Product Detail

TECHNICAL SPECIFICATIONS

Machine Demension

Food print-(L X W): 1200X1900mm;     Height(With tube):1650mm;     Weight:1050kgs

Standard Model Spes.

Maxi bearing pressure: 4137bar;     Stable working pressure: 0-300MPA;     Maxi fowrate: 3.5L/min;

Power: 30KW/40HP;     Full load: 65A;     Maxi oil pressure: 21MPA;     Pressure ratio: 1:20(oil:HP)

BENEFITS & FEATURES

1, Pump is highly designed from lower nosie, easy mantain, more safe,less space and longer life;

2, All top brands parts in machine, This ensures machine stable working and long life.

3, Dust and water proof design;

4, Integarted fan cooler inside;

5, PLC controled with all alarms protection: no water alarm, oil level alarm,over-load alarm,over-stroke alarm,over-pressure alarm,over temperature alarm; all shows on screen;

6,Water booster inside to ensure enough inlet waterjet for pump working;

7,Pressure can be adjustable in control system from 0-380mpa any time and any points. Save energy in cutting different materials

8,USA intensifier,reliable and stable;

9,All high pressure materials for all joints for HP ways,Imported tubes

RESOURCE

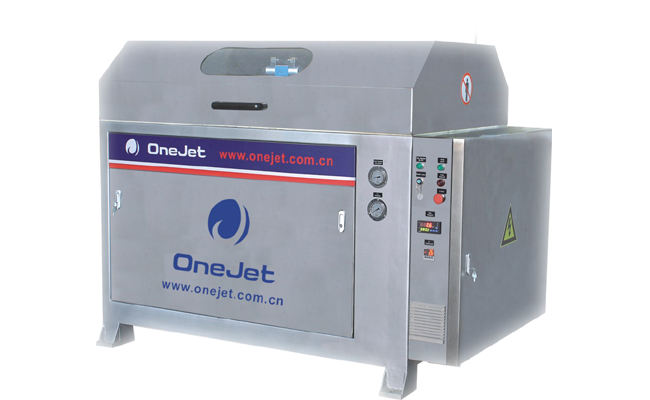

The ONEJET40 pump for pure waterjet cutting and food waterjet

More details，please download Onejet waterjet-50HP PUMP
