PUMPTECHNICAL SPECIFICATIONS

Machine Demension

Food print-(L X W): 1200X1900mm;     Height(With tube):1650mm;     Weight:1050kgs

Standard Model Spes.

Maxi bearing pressure: 4137bar;     Stable working pressure: 0-360MPA;     Maxi fowrate: 3.5L/min;

Power: 37KW/50HP;     Full load: 72A;     Maxi oil pressure: 21MPA;     Pressure ratio: 1:20(oil:HP)

Whole sets includes

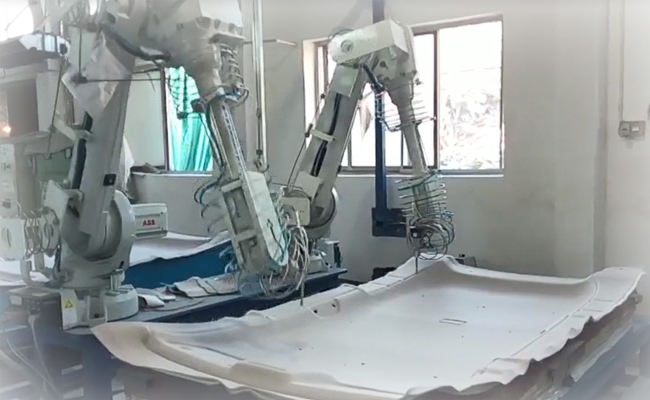

One 50HP pump with fan cooler; One compelet pure waterjet cutting head;tubes & pipes; ABB robot arm and controler

BENEFITS & FEATURES

1, Pump is highly designed from lower nosie, easy mantain, more safe,less space and longer life;

2, All top brands parts in machine, This ensures machine stable working and long life.

3, Dust and water proof design;

4, Integarted fan cooler inside;

5, PLC controled with all alarms protection: no water alarm, oil level alarm,over-load alarm,over-stroke alarm,over-pressure alarm,over temperature alarm; all shows on screen;

6,Water booster inside to ensure enough inlet waterjet for pump working;

7,Pressure can be adjustable in control system from 0-380mpa any time and any points. Save energy in cutting different materials

8,USA intensifier,reliable and stable;

9,All high pressure materials for all joints for HP ways,Imported tubes

RESOURCE

The ONEJET50 pump for waterjet cutting machines is the most popular on the market.

More details，please download Onejet waterjet-50HP PUMP
